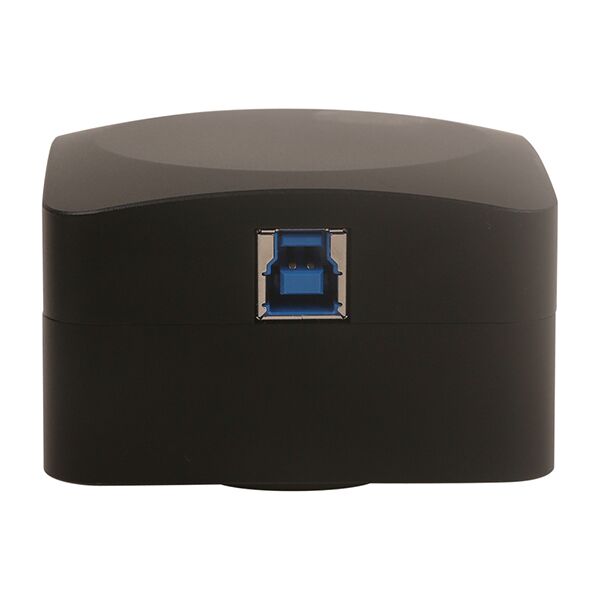

Fein Optic – 3DCxM2.3 Microscope Camera & Software 2.3 Megapixels

The Fein Optic 3DCxM2.3 microscope camera is a high sensitivity 2.3 megapixel camera with advanced imaging software. This microscopy cameras has a back-illuminated color sensor that allows light to be easily absorbed in the active layer on the sensor, resulting in greater quantum efficiency. The camera has low noise and a fast USB 3.0 output. This camera is ideal for low light, brightfield biological work, darkfield, phase contrast, reflective samples, industrial samples and documentation.

Specifications

Image Sensor 1/1.9″ Sony Exmor Back-Illuminated IMX185(C) (7.20 x 4.50) CMOS, USB 3.0
Pixel 2.3 Megapixels
Pixel Size 3.75 x 3.75µm
Resolution 1920 x 1200
Frame Rate 66fps @ 960 x 600
38fps @ 1920 x 1200
Binning 1×1, 2×2
Exposure 0.244ms~2s
Output USB 3.0
Spectral Range 380-650nm (with IR-filter)
Power DC5V over PC USB Port
USB Controls. White Balance, Auto White Balance, Capture still images or motion video with software. USB works with full use of software on PC or Laptop.
Software Features Image capture, still or motion video. Adjustment of white balance, color, frame rate, exposure, gain, flip, sampling, bit depth, ROI, histogram, darkfield correction. Annotations. Measurement and calibration: angles, lines, diameter, polygon, etc. Extended depth of focus. Image Stitching.
Operating System for Software (USB) Windows 7, 8, 10 (32 & 64 bit), Linux, Mac OSX. NOTE: Max OSX software only provides basic image management, no measurement or extended features.
PC Requirements (USB) CPU equal or greater than Intel Core2 2.8Ghz. Memory of 4GB or more. USB 3.0 port.
Operating Temp -10~50°C
Storage Temp -20~60°C
Operating Humidity 30-80%RH
Storage Humidity 10-60%RH
Size 65mm (2.56″) W x 88mm (3.46″) D x 78mm (3.07″) H
Connection C-Mount Threads
