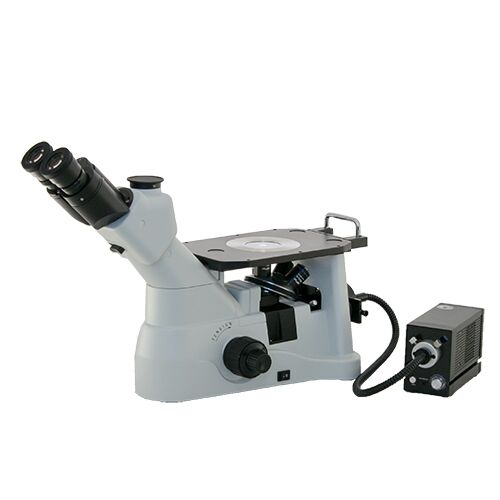

Fein Optic – Mi40 Inverted Metallurgical Microscope

The Fein Optic Mi40 inverted metallurgical microscope provides a large working surface for placing larger metal parts that need examination at high magnification. Simple polarization is performed by inserting the polarizer into the light path and dialing in the turntable on the 360° rotatable analyzer. LWD Plan Achromat metallurgical infinity corrected objectives provide optical clarity and resolution and higher NA semi apochromat brightfield metallurgical objectives are available.

Specifications

Optical System Infinity Color Corrected Achromatic Optical System
Viewing Head 45° Inclined gemel trinocular viewing head, interpupillary distance adjustable from 54mm – 75mm. Beam splitter ratio = 100:0, 80:20.
Eyepieces FPL-WF 10x widefield, high eyepoint plan eyepieces, FN22. Reticle retaining ring for 26mm diameter reticle.
FPL-WF 15x widefield, high eyepoint plan eyepieces, FN26. Reticle retaining ring for 25mm diameter reticle.
Objective Lenses Infinity Corrected LWD Plan Achromat Metallurgical 5x, 10x, 20x, 50x.
Infinity Corrected Plan Semi Apochromat Metallurgical 5x, 10x, 20x, 50x, 100x.
Nosepiece Reversed quintuple nosepiece.
Focus Adjustment Low-position coaxial focusing system with tension adjustment, coarse focusing 38mm per rotation. Fine adjustment precision of 0.002mm.
Body Automatic voltage sensing power supply 90~240V, removable power cord.
Stage Fixed stage 175mm x 145mm. Mechanical stage available with 130mm (X) x 90mm (Y) travel with two metal inserts. Drop-down right hand coaxial controls.
Illumination Reflected light high intensity 35W LED external illuminator with light guide.
Polarization Polarizer can be shifted out of the light path. Analyzer rotates 360°.
C-Mount Adapters Blue filter and green filter.
Filters Variety of 26mm diameter reticles available including grid, ruler, cross-line, etc. Metric or inches.
Reticles Variety of 26mm diameter reticles available including grid, ruler, cross-line, etc. Metric or inches.
