Richter Optica – S2-BL Dual Magnification Stereo Microscope

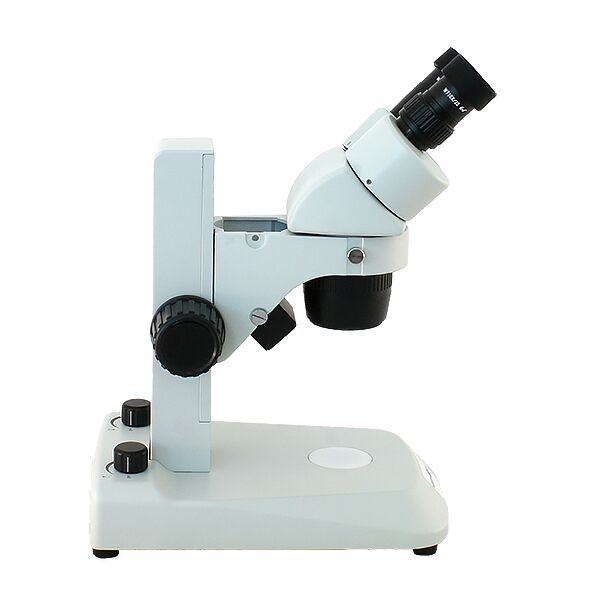

The Richter Optica S2-BL dual magnification stereo microscope has a built-in 1x & 3x objective. Depending on which eyepieces are used, the magnification of the microscope will vary (see the magnification chart shown below). The S2-BL is a sturdy microscope with all metal parts and glass optics. The built-in transmitted and reflected LED light floods the working area with cool illumination.



S2 Microscope Magnification / Ordering Part #s
10x Eyepieces 15x Eyepieces 20x Eyepieces
Magnification: 10x & 30x 15x & 45x 20x & 60x
Part #: S2-BL10 S2-BL15 S2-BL20

Specifications

Total Magnification Depends on eyepieces chosen. Options include 10x & 30x, 15x & 45x, or 20x & 60x.
Viewing Head Trinocular body with viewing head that rotates 360°. Beam splitter directs light from left eyetube toward camera port. Diopter on left eyetube.
Binocular body with viewing head that rotates 360°. Diopter on left eyetube.
Eyepieces Widefield 10x eyepieces / FN 20mm. Accepts 24mm diameter reticle.
Widefield 15x eyepieces / FN 15mm. Accepts 24mm diameter reticle.
Widefield 20x eyepieces / FN 10mm.
Objectives Built-in 1x and 3x objectives. Magnification is changed by rotating objective turret 90° to positive click stops.
Stand Rugged cast metal frame with white enamel finish. Head moves up and down on track stand with total Z-travel of 4″. Built-in top and bottom LED illumination. Supplied with 50mm glass stage plate and two locked-on stage clips.
Focusing Rack and pinion focusing with slip clutch to protect mechanism against over-turning. Special tension adjustment.
Working Distnace 100mm
Maximum Specimen Height 2.75″ (70mm)
Illumination 60-LED ring light with intensity control and on/off switch. 110~240V.
C-Mount Adapter 0.5x C-Mount Adapter.
Camera Options 3 or 5 megapixel CMOS USB camera with measuring and capture software.
High Definition (HD) camera with HDMI output. 60fps @ 1920 x 1080. USB capture control.
10″ Tablet touch-screen 5 megapixel camera. WiFi & Bluetooth enabled. Micro SD card slot. Includes software for measuring and image capture.
Dimensions Base is 8.25″ W x 11″ D. 15″ H.
Weight 10 lbs.
Warranty 5-year limited warranty. 1 Year warranty on cameras.
