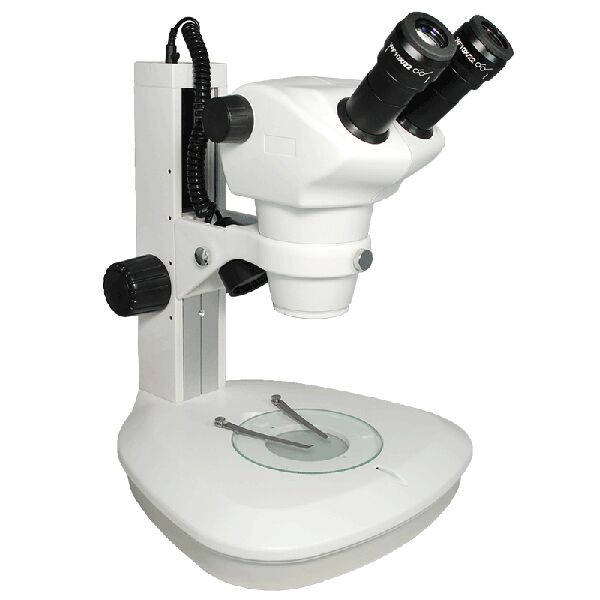

Richter Optica – S850-VLED Dual LED Stand Stereo Zoom Microscope

The Richter Optica S850-VLED stereo zoom microscope has a built-in zoom range of 0.8x – 5x. Depending on which eyepieces and/or auxiliary lenses are used, the magnification of the microscope will vary (see the magnification chart shown below). The S850-VLED is a sturdy microscope with all metal parts and glass optics. The track stand has dual LED illumination with 24 individual LED lights on the top light and 36 individual LED lights on the bottom transmitted light.



S6 Stereo Zoom Microscope Magnification
WF10x Eyepieces WF15x Eyepieces WF20x Eyepieces
Auxiliary Lens Working Distance Total Magnification Field Size (mm) Total Magnification Field Size (mm) Total Magnification Field Size (mm)
0.5x 220mm 4x – 25x 55 – 8.8 6x – 37.5x 40 – 6.4 8x – 50x 30 – 4.8
1x Standard 115mm 8x – 50x 27.5 – 4.4 12x – 75x 20 – 3.2 16x – 100x 15 – 2.4
2x 45mm 16x – 100x 13.75 – 2.2 24x – 150x 10 – 1.6 32x – 200x 7.5 – 1.2

Specifications

Viewing Head Binocular body with viewing head inclined 45°, rotatable 360°. Interpupillary distance adjustable from 52~75mm.
Trinocular body with viewing head inclined 45°, rotatable 360°. Interpupillary distance adjustable from 52~75mm.
Eyepieces Widefield, High Eyepoint, Plan 10x eyepieces / FN 22mm, with dual /-5 diopters. Accepts 25mm diameter reticle.
Widefield, High Eyepoint, Plan 15x eyepieces / FN 16mm, with dual /-5 diopters.
Widefield, High Eyepoint, Plan 20x eyepieces / FN 12mm, with dual /-5 diopters.
Zoom Ratio 1:6.3
Objectives Zoom range of 0.8x- 5x.
Stand Dual LED stand with black/white stage plate, glass stage plate and stage clips. Dual rheostat controls. 110~240V. Top LED light has 24 individual LEDs. Bottom LED light has 36 individual LEDs. 300mm x 300mm x 325mm.
Focusing Coarse focus adjustment, tension adjustable.
Working Distnace 115mm
Maximum Specimen Height 110mm if focus holder is secured in highest position, using no auxiliary lens.
183mm if focus holder is secured in highest position, using 2x auxiliary lens.
Illumination Dual LED illumination. Top light has 24 individual LEDs, bottom light has 36 individual LEDs.
Auxiliary Lenses 0.5x Lens, WD = 220mm
2.0x Lens, WD = 45mm
C-Mount Adapter 0.4x focusing c-mount adapter with trinocular body.
Dimensions 300mm x 300mm x 325mm (11.81″ x 11.81″ x 12.8″)
Weight 11.5 lbs.
Warranty 5-year limited warranty.
