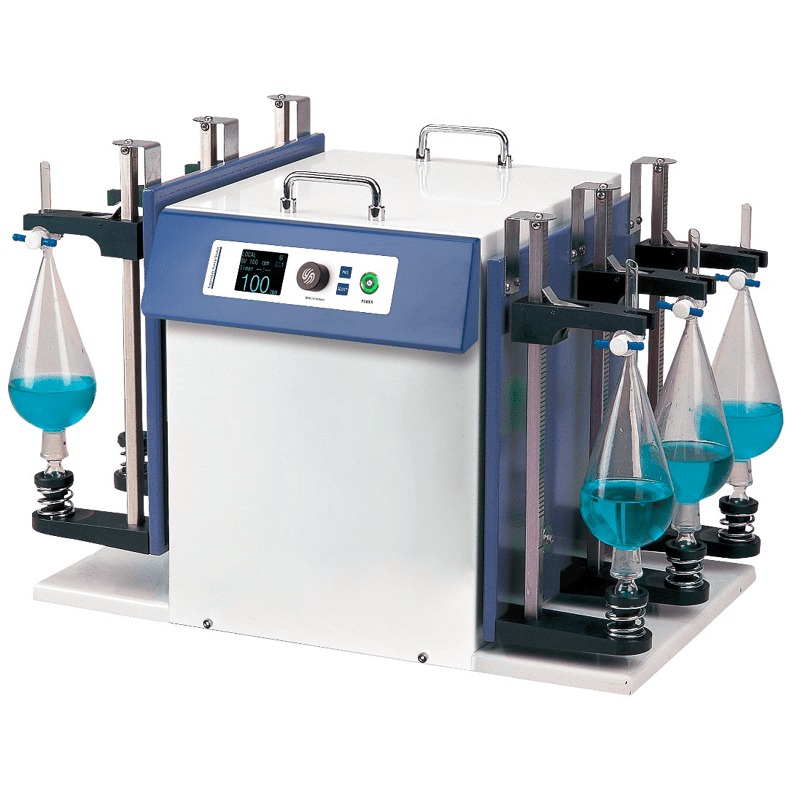

Wiggens – Separatory Funnel Shaker – WS-1

In stock

Speed Range :50~300rpm,Vertical Stroke Length :40mm


Intensive vertical reciprocating quick solvent extraction shaking unit.
The separatory funnel shaker is able to shake six samples in identical conditions for any series or comparative protocols in chemistry, biotech, and medical labs.

* Intensive vertical shaking
* Shaking of 6 samples under identical conditions possible
* Mostly used in chemical, biotech, and medical laboratories
* The speed can be set between 50 and 300 rpm
* The timer can be set between 1min and 99hour59min
* Flasks of up to 40 mm width can be used
* Bright LED display for convenient speed monitoring
* Wide speed range and high precision of the speed control
* Feedback loop to a digital controller
* At the end of a shaking session the device stops automatically with an audible alarm sound
* Easily adjustable flask holder (max. 5 flasks per side)
* Two holders for a total of 6 flasks (1000ml) included


Model WS-1
Motion Type Vertical reciprocating
Speed Range (rpm) 50 ~ 300
Accuracy(± rpm) ± 1
Vertical Stroke Length (mm / inch) 40 / 1.6
Timer 1Min to 99Hour59Min
Overall (W×D×H) (mm / inch) 445×730×505 / 17.5×28.7×19.9
Max. Load per each Side (kg / lbs) 3 / 6.6
Power (W) 90
Fixture 6
Weight (Kg) 77
Order No. 32012KA
