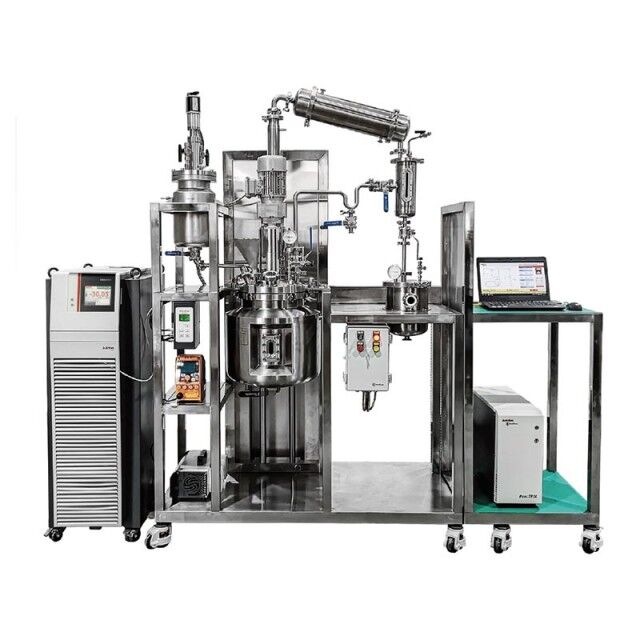

Wiggens – VR-10L Pilot Plants

The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.
In recent decades,we have developed a modular system with standardised connection components,in order to economically implement individual solutions.This greatly simplifies the design and construction of our custom-made products.

Specification

Model VR-10L
Performance and Material Material 316L S.S.
Max. Temperature 300℃
Max. Pressure ≤5bar
Jacketed vessel Volume 10L
Inner Dia. 250mm
Inner Height 250mm
Thickness 4mm
O-ring Material PTFE(Viton, FFKM for optional)
Size 283mm
Lids O.D. 300mm
I.D. 250mm
Thickness 28mm
Heating unit ( Optional) JULABO unit Yes
Stir Type of sealling Double mechanical seal
Motor Overhead stirring motor
Speed 20~1800rpm( Other model for optional )
Frame Type SS Frame
Liquid receiving tray Stainless steel
