Product Features
• Direct heating with unique insulation structure CO2 incubator Internal max. capacity 170 L
• No fan, no vibration, no maintenance of HEPA filter, no spread-out of contamination
• Maximized inner space by no fan structure
• Easy to clean interior and big water pan Dual beam NDIR CO2 sensor
• Intuitive 7″ control screen and informative display
• USB port for data tracking
• No fan, no vibration, no maintenance of HEPA filter, no spread-out of contamination
• Maximized inner space by no fan structure
• Easy to clean interior and big water pan Dual beam NDIR CO2 sensor
• Intuitive 7″ control screen and informative display
• USB port for data tracking
Applications
• Mammalian cell and tissue cultivation
Technical Specifications
|

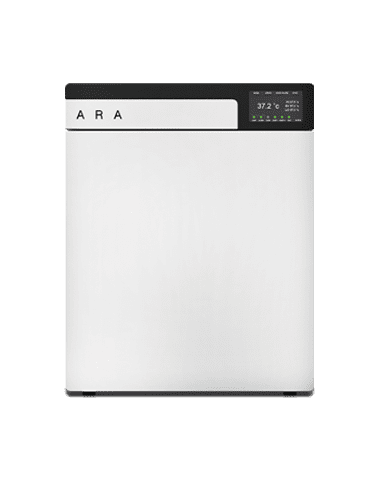

Model
|
ARA P170
|
|
External dimension
|
720(W) x 639(D) x 908(H),mm
|
|
Net weight
|
91 kg
|
|
Door left/right
|
On site
|
|
Fan
|
No
|
|
Temp. control heating
/Temp. control system |
Direct heating by 4 separate heaters
/ Microprocessor PID |
|
Temp. range
|
Amb. 5~50℃
|
|
Temp. accuracy
|
±0.2℃
|
|
Temp. uniformity
|
±0.3℃
|
|
Temp. recovery rate
|
< 10 min
|
|
CO2 control
|
Dual beam NDIR
|
|
CO2 accuracy
|
±0.1
|
|
CO2 range
|
0-20%
|
|
CO2 recovery rate
|
< 7 min
|
|
Humidity method
|
Water Pan
|
|
Humidity range
|
Over 90%
|
|
Display
|
7′ LCD, touchscreen
|
|
Data tracking
|
240 hours continuous
|
