Product Features
• Effective for fast freeze drying of any samples
• HyperVAC-MAX empowered by HyperCOOL guarantees capacity and performance at higher level.
• Extended applications for concentrating wider range or larger volume of solvents.
• The compatible vacuum rotary vane pump generates vacuum down inside the chamber.
• Up to 8 external bottles can be accommodated by the manifolds of HyperCOOL.
• Automatic De-Vac and De-Ice functions installed
• HyperVAC-MAX empowered by HyperCOOL guarantees capacity and performance at higher level.
• Extended applications for concentrating wider range or larger volume of solvents.
• The compatible vacuum rotary vane pump generates vacuum down inside the chamber.
• Up to 8 external bottles can be accommodated by the manifolds of HyperCOOL.
• Automatic De-Vac and De-Ice functions installed
Applications
• Study and QC of dried foods like dried fruits, meats, etc.
• Stock of bacteria, virus, fungi, etc.
• Seed preservation of plants or mushrooms
• Improved preservation of flowers and dry display study
• Pharmaceutical study and production
• Research and production of vaccine and antidote
• Tissue or cell preparation for EM analysis
• Medical research
• Stock of bacteria, virus, fungi, etc.
• Seed preservation of plants or mushrooms
• Improved preservation of flowers and dry display study
• Pharmaceutical study and production
• Research and production of vaccine and antidote
• Tissue or cell preparation for EM analysis
• Medical research
Technical Specifications

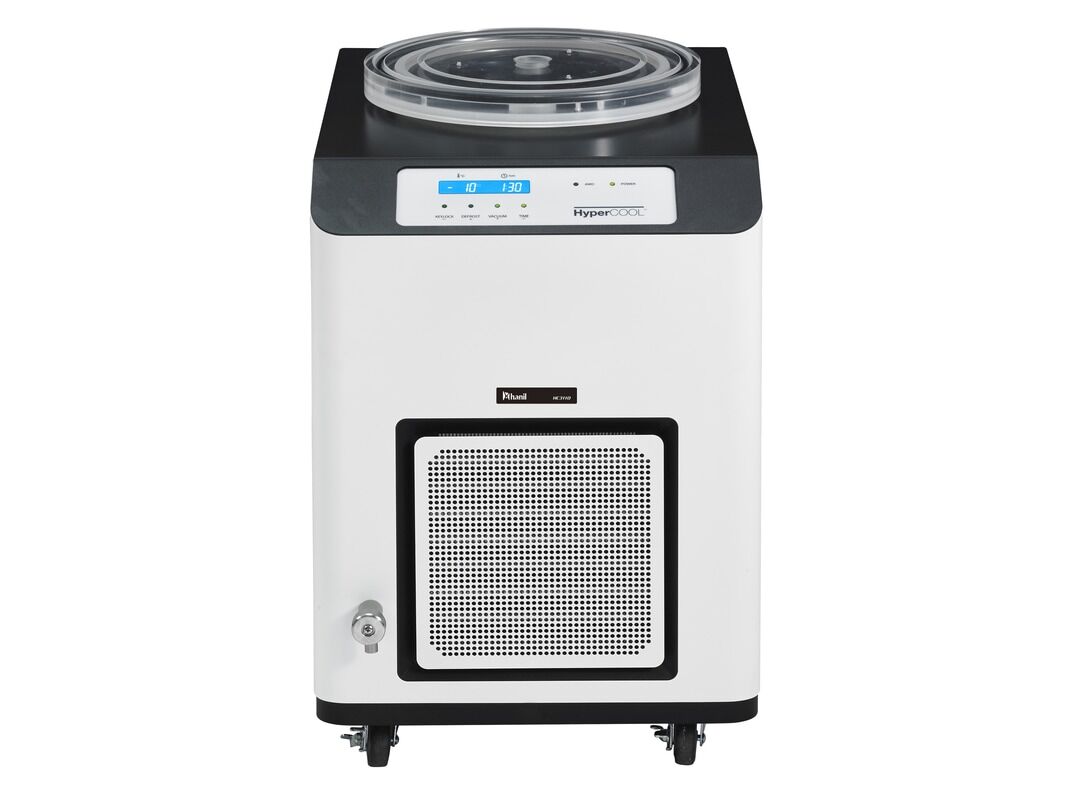

| Model | HC3110 |
| Ultimate chamber temp (at RT) (℃) | -110 |
| Chamber volume (L) | 4 |
| Trap (Chamber) size (Ø x L) | 165 x 202 |
| ICE condensing capacity (kg) | 3 |
| ICE condensing performance (kg/day) | 2.5 |
| Compressor | 1/3 HP x 2 |
| Refrigerant | R507/R1150 |
| Digital Readout | Time, Temperature |
| Function | Keylock, Defrost, Vacuum, Time |
| Power requirement (Resting, VA) | 819 |
| Power supply(V/Hz) | 220 V/50~60 Hz (110 V optional) |
| Dimension (W x D x H, mm) | 400 x 660 x 570 |
| Weight (kg) | 72 |
| Cat. No. | HHC-3110 |
