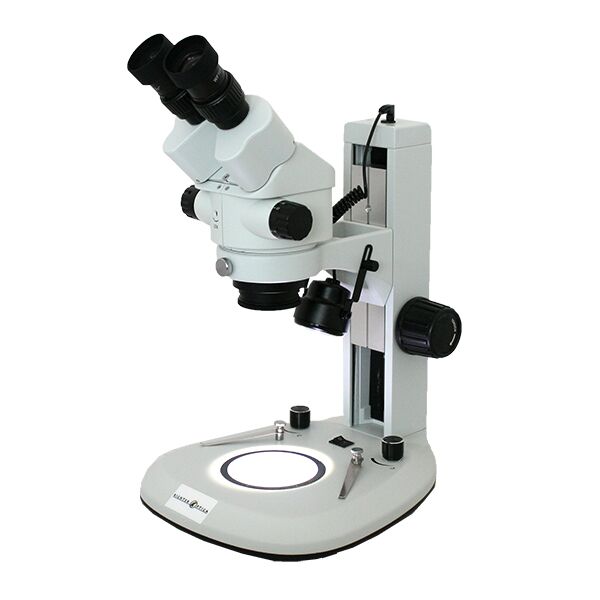

Richter Optica – S6-RLT Stereo Zoom LED Microscope

The Richter Optica S6-RLT stereo zoom microscope has a built-in zoom range of 0.7x – 4.5x. Depending on which eyepieces and/or auxiliary lenses are used, the magnification of the microscope will vary (see the magnification chart shown below). The S6-RLT has built-in reflected and transmitted LED illumination, each with its own intensity control. This microscope is sturdy with all metal parts and glass optics.

S6 Stereo Zoom Microscope Magnification
		WF10x Eyepieces		WF15x Eyepieces		WF20x Eyepieces
Auxiliary Lens	Working Distance	Total Magnification	Field Size (mm)	Total Magnification	Field Size (mm)	Total Magnification	Field Size (mm)
0.5x	177mm	3.5x-22.5x	57.1-8.9	5.25x-33.75x	42.9-6.7	7x-45x	28.6-4.4
1x Standard	100mm	7x-45x	28.5-4.4	10.5x-67.5x	21.4-3.3	14x-90x	14.3-2.2
1.5x	47mm	10.5x-67.5x	19-3	15.75x-101.25x	14.2-2.2	21x-135x	9.5-1.5
2x	26mm	14x-90x	14.3-2.2	21x-135x	10.7-1.7	28x-180x	7.1-1.1

Specifications

Viewing Head	Binocular body with viewing head that rotates 360°. Head locks in place with tightening screw. Dual diopters on each eyetube.
Viewing Head	Trinocular body with viewing head that rotates 360°. Head locks in place with tightening screw. Dual diopters on each eyetube. Light is directed 100% to eyetubes and trinocular port.
Eyepieces	Widefield 10x eyepieces / FN 20mm. Accepts 24mm diameter reticle.
	Widefield 15x eyepieces / FN 15mm. Accepts 24mm diameter reticle.
	Widefield 20x eyepieces / FN 10mm.
Zoom Ratio	6.4:1
Objectives	Zoom range of 0.7x- 4.5x.
Stand	Rugged cast metal frame track stand with white enamel finish. Transmitted and reflected LED illumination. Top and bottom LED lights each have their own rheostat controls. Supplied with 95mm frosted stage plate and black/white stage plate. Two locked-on stage clips. CE Certified. 115~230V.
Focusing	Corase focus adjustment.
Working Distnace	100mm
Illumination	Transmitted and Reflected LED illumination with intensity control and on/off switch for each light.
Dimensions	9.5″ W x 11.5″ D x 15″ H.
Weight	10 lbs.
Warranty	5-year limited warranty.
