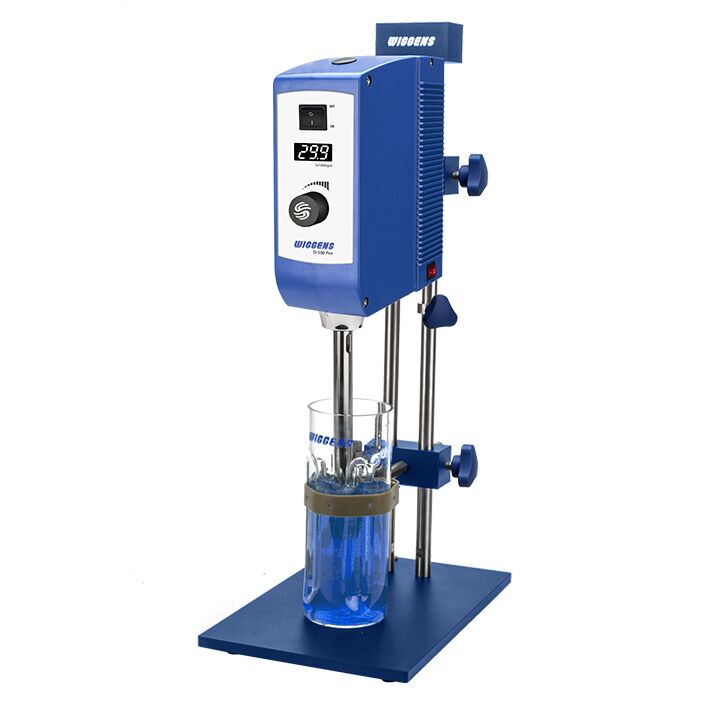

Wiggens – High Speed Homogenizer – D-500 Pro

High Speed Homogenizer

Used for homogenizing, emulsifying or suspending. There is a broadspectrum of dispersing tools to choose from.

Advantages of homogenizer

* Continuosly adjustable speeds for better results
* Light-weighted and small-dimensioned for better handling
* Triple safety of the drive (overload protection. Smooth start – against jerky work, safety switch)
* High quality dispersing tools as standard for better resistance to corrosion (SS 316 L steel)
* Quick-change system of the dispersing tools for a short changing time between preparations
* Viscosities up to 10,000 cps
* One shaft size
* High quality lab dispersing unit, at a competitive price!!

Specifications

D-500 Pro
Speed Display LED
Speed with Zero-Load (rpm)) 500 ~ 30000
Process Range H2O(mL) 10 ~ 40000
Applicable aggregates Ø4~Ø23 mm
Noise Level (dB) 66 dB (2500 rpm);

72 dB (30,000 rpm)

Motor AC
supply voltage (V) 220V 50/60Hz
Input / Output Power (W) 500
Weight (kg) 1.8
Contact Material 316L Stainless Steel / PTFE
Dimensions (W x L x H in mm) 157×76×236 mm
Order No. 1710500P
