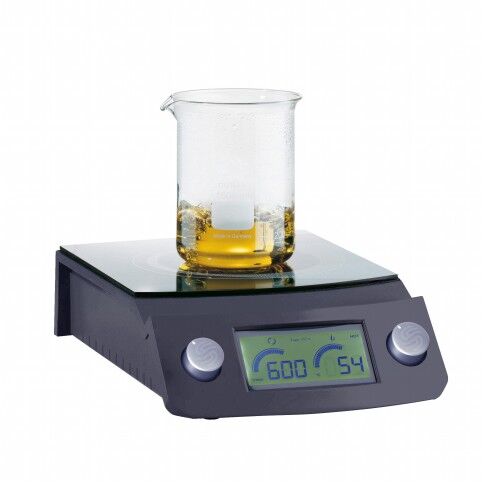

Infrared Hot Plates
* Smooth and corrosion resistant Ceramic Glass top plate
* Excellent transmittance of the infrared light
* Material can resist a thermal shock of up to 700℃
* Corrosion-resistant, solid casing which is hermetically sealed
* Fast heating and excellent temperature stability
* Temperature can be externally controlled by the connection of a Pt100 temperature sensor
* Timer function of up to 1800 seconds for automatic heating
* Large LCD screen displays the set and actual temperature
* A high-temperature indicator warns the user and prevents burning injuries
* Compressed air connector optionally available for the use of the hotplate in an aggressive environment
* Rod holder can be conveniently used to connect diverse accessories such as a temperature sensor
* SLK1 / SLK2 Infrared Hot Plates employ a 24 step temperature regulator
* SLK2-T can be connected to an external temperature sensor for direct and precise temperature control
Specifications
| Model | SLK 1 |
| Display Mode | LCD |
| Heating Power (kW) | 1.2 |
| Max. Set Temperature ( top plate) (℃ ) | 550 |
| Min. Time to Boiling Point for 1L H2O (min) | 10 |
| Top Plate Area (W x L in mm) | 285 x 285 |
| Heating Zone (Diameter in mm) ing | φ155 |
| Temperature Sensor Connector | – |
| Top Plate Material | Glass Ceramic |
| Dimensions (L x W x H in mm) | 395 x 295 x 110 |
| Maximum Capacity (L) | 25 |
| Admissible Ambient Temperature (°C) | 10-40 |
| Admissible Air Humidity (%) | 85 |
| Protection Category | IP20 |
| Protection Class | 1 |
| Order No. | 285416616 |
