For measuring, control and monitoring
WIGGENS temperature controllers measure, control and monitor applications in laboratories such as heating mantle and chemical reactors.
Ordering Information

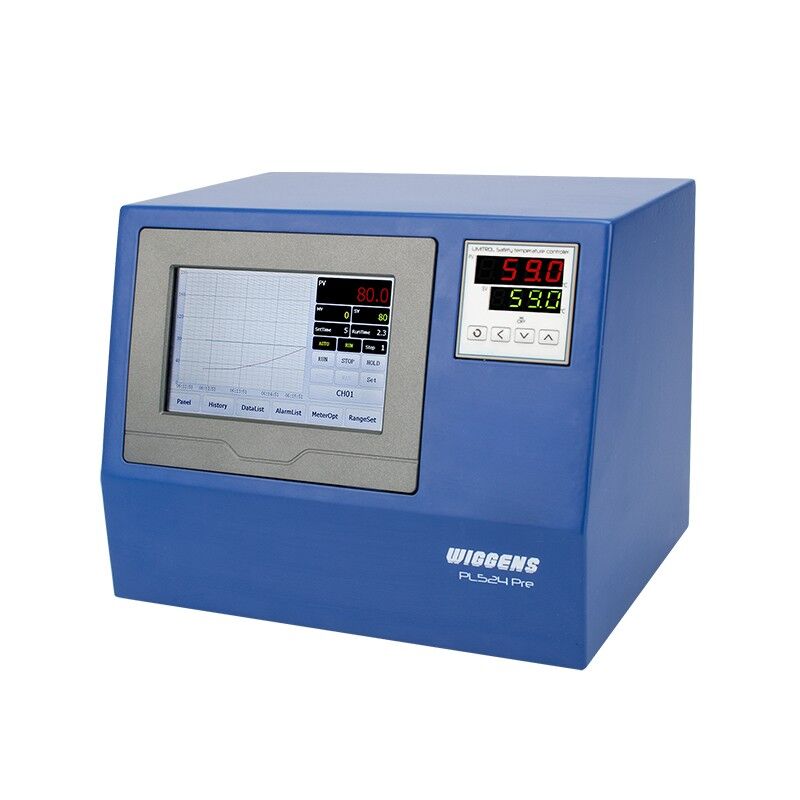

| Models / Specifications | PL524 Pre | |
| Name | Program controller for temperature | |
| Screen | 5” TFT touch screen | ● |
| LED | ||
| Function | Heating | ● |
| Cooling | ● | |
| Programming | ● | |
| Stirring | ||
| Safety temperature | ● | |
| Interface | RS485 | ● |
| RS232 | ● | |
| Ethernet | ● | |
| USB-A | ● | |
| Alarm | ● | |
| Options | Pt100 | ○ |
| Thermocouple | ○ | |
| heating mantle | ○ | |
| matching unit | ○ please reference Note 3 | |
| Solenoid valve for cooling | ○ | |
| WH260 series | ||
Note 1：● Standard configration ○ Options
Note 2：TCSS, PL524 Pre, PL524 Pro-Stir, PL524 Pro working with two temperature sensors；PC524 just need one temperature sensor
Note 3：TCSS-1 matching with heating-stirring mantle, PL524pro-Stir matching with heating-stirring mantle
TCSS-2 matching with WB201C motor (It is the same motor as WB2000-C)
TCSS-3 matching with WB181D motor (It is the same motor as WB1800-D)
TCSS-4 matching with WB181C motor (It is the same motor as WB1800-C)
