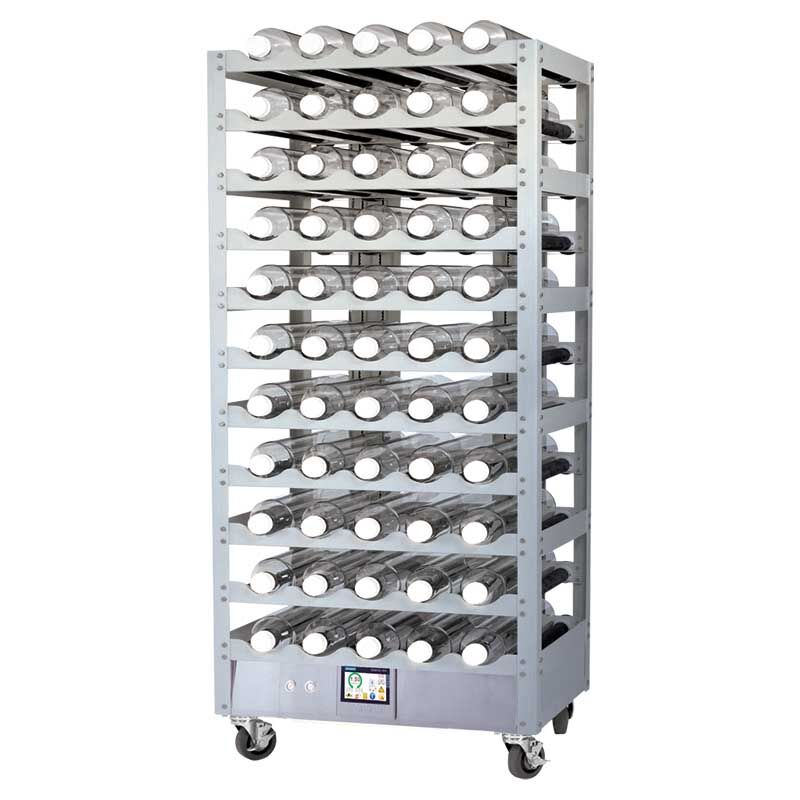

Celrol Roller is ideal for experimental and pilot-scale adherent cell culture.
* Robust touch screen interface that is easy to view from a distance
* Readily recognized icons for intuitive navigation
* Digitally controlled maintenance free motor accurate to 0.01 RPM
* RS-422 Modbus RTU, RS-4485 Modbus RTU, Modbus TCP and TCP/IP
* SMS alarm function (option)
* Can Be directly connected to the printer
Specifications
| Model | Celrol Elite |
| Display | SIMATIC HMI Touch Screen |
| Capacity | 8~88 Positions
5~55 Positions |
| Bottle Speed (110mm Bottle) | 0.08~2.5rpm |
| Diameter of roller bottler | 108~121mm |
| Length of roller bottler | Max. 550mm |
| Accuracy | 0.01rpm |
| Drive | Belt Driven |
| Motor type | Brushless DC |
| Rotation Direction | Clockwise and Counter-Clockwise |
| Options | Temperature Alarm and Battery Backup |
| Remote Communication | RS-422 Modbus RTU, RS-4485 Modbus RTU, Modbus TCP and TCP/IP |
| Humidity | 80% up to 31℃ |
| Operating Temperature | 10 to 40℃ |
| Electrical | 100-240 VAC, 50/60 Hz |
