The requirements of our customers for the reaction vessels are as varied as the respective processes which arecarried out in them.
In recent decades,we have developed a modular system with standardised connection components,in order to economically implement individual solutions.This greatly simplifies the design and construction of our custom-made products.

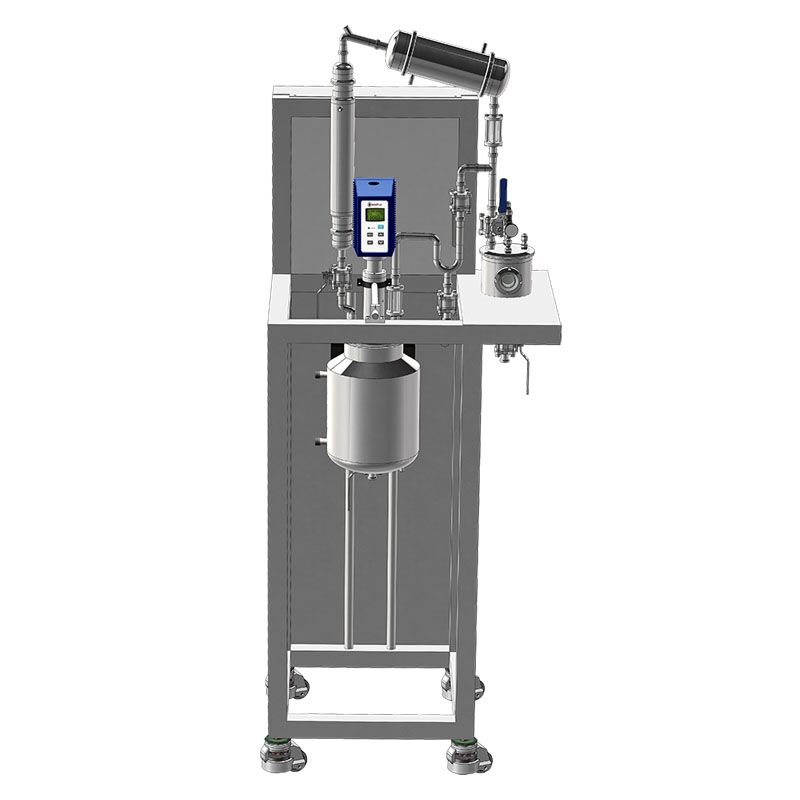

Specification
| Model | VR-5000 | |
| Performance and Material | Material | 316L S.S. |
| Max. Temperature | 300℃ | |
| Max. Pressure | ≤5bar | |
| Jacketed vessel | Volume | 5000ml |
| Flange | DN153 | |
| Inner Dia. | 147mm | |
| Inner Height | 280mm | |
| O-ring | Material | PTFE（ Viton, FFKM for optional） |
| Size | 153mm | |
| Lids | Flange | DN153 |
| Center Ports | M38X1.5 | |
| Other ports | 1/4″ and 1/2″ NPT | |
| Heating unit ( Optional) | JULABO unit | Yes |
| Stir | Type of sealling | Double mechanical seal |
| Motor | Overhead stirring motor | |
| Speed | 20~1800rpm( Other model for optional ) | |
| Frame | Type | SS Frame |
| Size | 600*360/700mm( L*W*H ) | |
| Liquid receiving tray | Stainless steel | |
